实时计算网站PV案例

0）基础知识准备

1）需求

       统计网站pv。

2）需求分析

方案一：

定义static long pv，Synchronized 控制累计操作。（不可行）

原因：Synchronized 和 Lock在单JVM下有效，但在多JVM下无效

方案二：

shuffleGrouping下，pv * Executer并发数

驱动函数中配置如下： builder.setSpout(“PVSpout”, new PVSpout(), 1); builder.setBolt(“PVBolt1”, new PVBolt1(), 4).shuffleGrouping(“PVSpout”); 在PVBolt1中输出时 System.err.println(“threadid:” + Thread.currentThread().getId() + ”  pv:” + pv*4); 因为shuffleGrouping轮询分配

优点：简单、计算量小

缺点：稍有误差，但绝大多数场景能接受

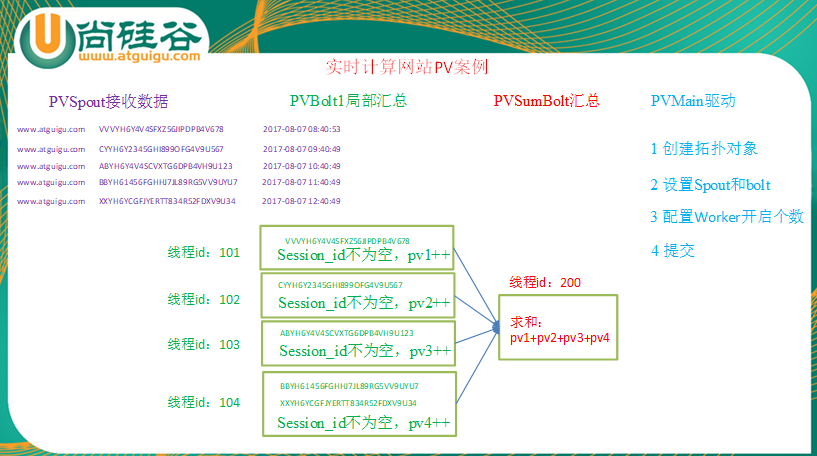

方案三：

PVBolt1进行多并发局部汇总，PVSumbolt单线程进行全局汇总

线程安全：多线程处理的结果和单线程一致

优点：绝对准确；如果用filedGrouping可以得到中间值，如单个user的访问PV（访问深度等）

缺点：计算量稍大，且多一个Bolt

3）案例实操

（1）创建数据输入源PVSpout

package com.atguigu.storm.pv; import java.io.BufferedReader; import java.io.FileInputStream; import java.io.IOException; import java.io.InputStreamReader; import java.util.Map;   import org.apache.storm.spout.SpoutOutputCollector; import org.apache.storm.task.TopologyContext; import org.apache.storm.topology.IRichSpout; import org.apache.storm.topology.OutputFieldsDeclarer; import org.apache.storm.tuple.Fields; import org.apache.storm.tuple.Values;   public class PVSpout implements IRichSpout{          private static final long serialVersionUID = 1L;        private SpoutOutputCollector collector ;        private BufferedReader reader;               @SuppressWarnings(“rawtypes”)        @Override        public void open(Map conf, TopologyContext context, SpoutOutputCollector collector) {               this.collector = collector;                             try {                      reader = new BufferedReader(new InputStreamReader(new FileInputStream(“e:/website.log”),”UTF-8″));                                    } catch (Exception e) {                      e.printStackTrace();               }        }          @Override        public void close() {                             try {                      if (reader != null) {                             reader.close();                      }               } catch (IOException e) {                      e.printStackTrace();               }        }          @Override        public void activate() {                      }          @Override        public void deactivate() {                      }          private String str;               @Override        public void nextTuple() {                             try {                      while((str = reader.readLine()) != null){                                                         collector.emit(new Values(str));                                                         Thread.sleep(500);                      }               } catch (Exception e) {                                    }        }          @Override        public void ack(Object msgId) {        }                 @Override        public void fail(Object msgId) {                      }          @Override        public void declareOutputFields(OutputFieldsDeclarer declarer) {               declarer.declare(new Fields(“log”));        }          @Override        public Map<String, Object> getComponentConfiguration() {               return null;        } }

（2）创建数据处理pvbolt1

package com.atguigu.storm.pv; import java.util.Map; import org.apache.storm.task.OutputCollector; import org.apache.storm.task.TopologyContext; import org.apache.storm.topology.IRichBolt; import org.apache.storm.topology.OutputFieldsDeclarer; import org.apache.storm.tuple.Fields; import org.apache.storm.tuple.Tuple; import org.apache.storm.tuple.Values;   public class PVBolt1 implements IRichBolt {               private static final long serialVersionUID = 1L;        private OutputCollector collector;        private long pv = 0;          @SuppressWarnings(“rawtypes”)        @Override        public void prepare(Map stormConf, TopologyContext context, OutputCollector collector) {               this.collector = collector;        }          @Override        public void execute(Tuple input) {               // 获取传递过来的数据               String logline = input.getString(0);                 // 截取出sessionid               String session_id = logline.split(“\t”)[1];                 // 根据会话id不同统计pv次数               if (session_id != null) {                      pv++;               }                 // 提交               collector.emit(new Values(Thread.currentThread().getId(), pv));                 System.err.println(“threadid:” + Thread.currentThread().getId() + ”  pv:” + pv);        }          @Override        public void declareOutputFields(OutputFieldsDeclarer declarer) {               declarer.declare(new Fields(“thireadID”, “pv”));        }          @Override        public void cleanup() {          }          @Override        public Map<String, Object> getComponentConfiguration() {               return null;        } }

（3）创建PVSumBolt

package com.atguigu.storm.pv; import java.util.HashMap; import java.util.Iterator; import java.util.Map; import org.apache.storm.task.OutputCollector; import org.apache.storm.task.TopologyContext; import org.apache.storm.topology.IRichBolt; import org.apache.storm.topology.OutputFieldsDeclarer; import org.apache.storm.tuple.Tuple;   public class PVSumBolt implements IRichBolt {          private static final long serialVersionUID = 1L;        private Map<Long, Long> counts = new HashMap<>();          @SuppressWarnings(“rawtypes”)        @Override        public void prepare(Map stormConf, TopologyContext context, OutputCollector collector) {          }          @Override        public void execute(Tuple input) {               Long threadID = input.getLong(0);               Long pv = input.getLong(1);                 counts.put(threadID, pv);                 long word_sum = 0;                 Iterator<Long> iterator = counts.values().iterator();                 while (iterator.hasNext()) {                      word_sum += iterator.next();               }                 System.err.println(“pv_all:” + word_sum);        }          @Override        public void cleanup() {        }          @Override        public void declareOutputFields(OutputFieldsDeclarer declarer) {          }          @Override        public Map<String, Object> getComponentConfiguration() {               return null;        } }

（4）驱动

package com.atguigu.storm.pv; import org.apache.storm.Config; import org.apache.storm.LocalCluster; import org.apache.storm.StormSubmitter; import org.apache.storm.topology.TopologyBuilder;   public class PVMain {          public static void main(String[] args) {               TopologyBuilder builder = new TopologyBuilder();                             builder.setSpout(“PVSpout”, new PVSpout(), 1);               builder.setBolt(“PVBolt1”, new PVBolt1(), 4).shuffleGrouping(“PVSpout”);               builder.setBolt(“PVSumBolt”, new PVSumBolt(), 1).shuffleGrouping(“PVBolt1”);                             Config conf = new Config();                             conf.setNumWorkers(2);                             if (args.length > 0) {                      try {                             StormSubmitter.submitTopology(args[0], conf, builder.createTopology());                      } catch (Exception e) {                             e.printStackTrace();                      }               }else {                      LocalCluster cluster = new LocalCluster();                      cluster.submitTopology(“pvtopology”, conf, builder.createTopology());               }        } }

（5）测试，执行程序输出如下结果

threadid:161  pv:1 pv_all:1 threadid:164  pv:1 pv_all:2 threadid:161  pv:2 pv_all:3 threadid:172  pv:1 pv_all:4 threadid:164  pv:2 pv_all:5 threadid:164  pv:3 pv_all:6 threadid:162  pv:1 pv_all:7 threadid:161  pv:3 pv_all:8 threadid:172  pv:2 pv_all:9 threadid:164  pv:4 pv_all:10 threadid:162  pv:2 pv_all:11 threadid:172  pv:3 pv_all:12 threadid:164  pv:5 pv_all:13 threadid:164  pv:6 pv_all:14 threadid:161  pv:4 pv_all:15 threadid:161  pv:5 pv_all:16 threadid:164  pv:7 pv_all:17 threadid:172  pv:4 pv_all:18 threadid:172  pv:5 pv_all:19 threadid:161  pv:6 pv_all:20 threadid:162  pv:3 pv_all:21 threadid:164  pv:8 pv_all:22 threadid:172  pv:6 pv_all:23 threadid:164  pv:9 pv_all:24 threadid:161  pv:7 pv_all:25 threadid:162  pv:4 pv_all:26 threadid:162  pv:5 pv_all:27 threadid:162  pv:6 pv_all:28 threadid:164  pv:10 pv_all:29 threadid:161  pv:8 pv_all:30
