前言

承接Spark Sql优化方案上文，上篇介绍了Spark Sql当中小表join大表可以使用广播join优化，本篇就介绍大表join大表的优化。

还是这三张表，这次演示购物车表和支付表的join，两张表的测试数据大小为4.7G和2.3G。

三表join

三张表先正常进行join,先让两张大表join，再与课程表小表join。

package com.atguigu.sparksqltuning


import org.apache.spark.SparkConf
import org.apache.spark.sql.functions.broadcast
import org.apache.spark.sql.{SaveMode, SparkSession}
object SMBJoinTuning {


  def main(args: Array[String]): Unit = {
    val sparkConf = new SparkConf().setAppName("test")
      .set("spark.sql.shuffle.partitions", "36")
    val sparkSession = SparkSession.builder().config(sparkConf).enableHiveSupport().getOrCreate()
    val ssc = sparkSession.sparkContext
     useJoin(sparkSession)
  }
  def useJoin(sparkSession: SparkSession) = {
    //查询出三张表 并进行join 插入到最终表中
    val saleCourse = sparkSession.sql("select *from dwd.dwd_sale_course")
    val coursePay = sparkSession.sql("select * from dwd.dwd_course_pay")
      .withColumnRenamed("discount", "pay_discount")
      .withColumnRenamed("createtime", "pay_createtime")
    val courseShoppingCart = sparkSession.sql("select *from dwd.dwd_course_shopping_cart")
      .drop("coursename")
      .withColumnRenamed("discount", "cart_discount")
      .withColumnRenamed("createtime", "cart_createtime")
      //大表先与大表join
    val tmpdata = courseShoppingCart.join(coursePay, Seq("orderid"), "left")
      //再与小表join，并且走广播join
    val result = broadcast(saleCourse).join(tmpdata, Seq("courseid"), "right")
    result.select("courseid", "coursename", "status", "pointlistid", "majorid", "chapterid", "chaptername", "edusubjectid"
      , "edusubjectname", "teacherid", "teachername", "coursemanager", "money", "orderid", "cart_discount", "sellmoney",
      "cart_createtime", "pay_discount", "paymoney", "pay_createtime", "dwd.dwd_sale_course.dt", "dwd.dwd_sale_course.dn")
      .write.mode(SaveMode.Overwrite).insertInto("dws.dws_salecourse_detail_1")
  }

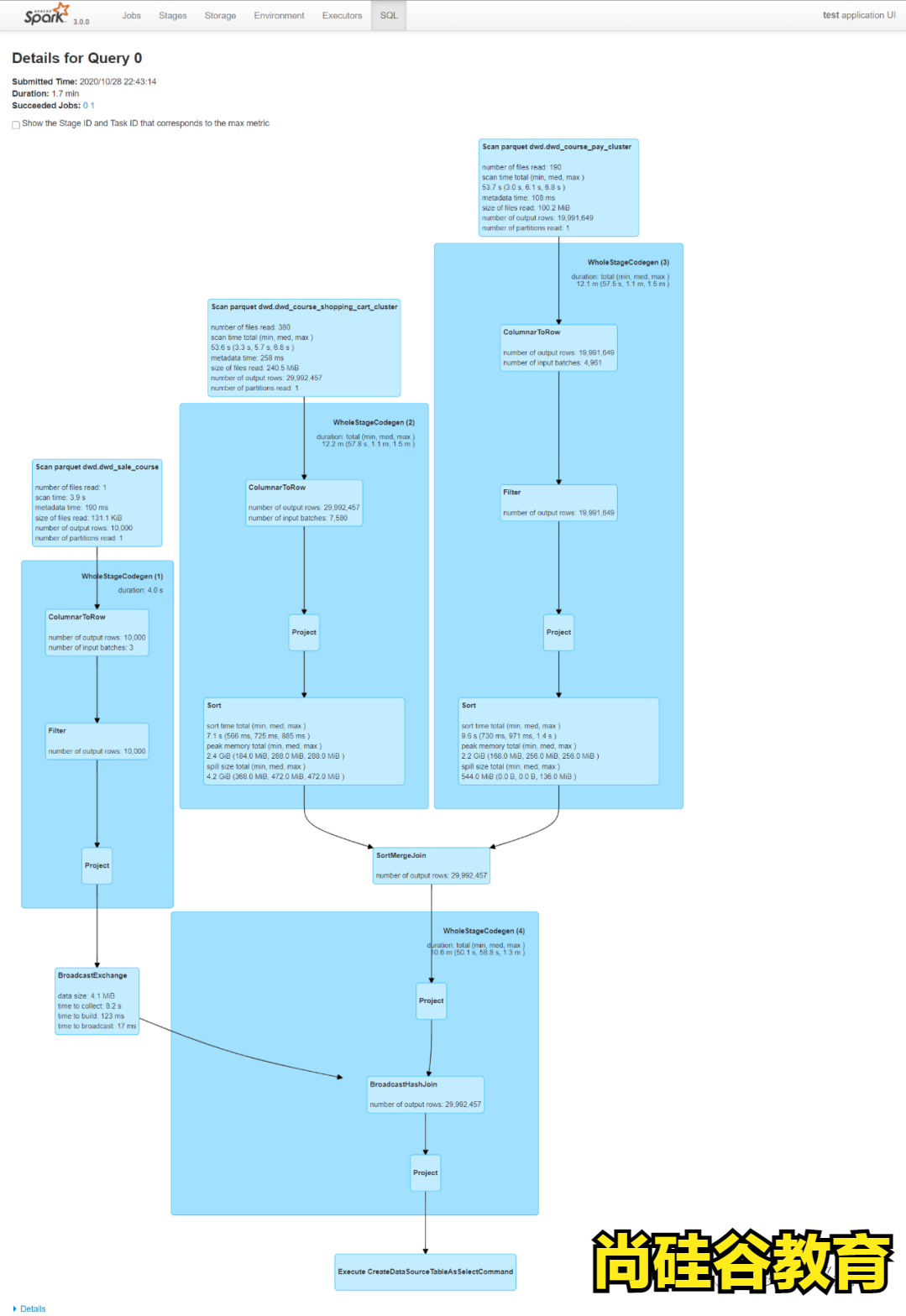

编写代码后，打成jar包运行yarn任务，查看对应执行计划图。

可以看到两张大表join前的排序时间分别为31.1秒和19秒，那么针对这个排序时间就可以进行优化。

SMB JOIN

SMB JOIN用于大表join大表的优化。

SMB JOIN是sort merge bucket操作，需要进行分桶，首先会进行排序，然后根据key值合并，把相同key的数据放到同一个bucket中（按照key进行hash）。分桶的目的其实就是把大表化成“小表”（多个桶）。相同key的数据都在同一个桶中之后，再进行join操作，那么在联合的时候就会大幅度地减小无关项的扫描。

使用条件：

（1）两表进行分桶，桶的个数必须相等

（2）两边进行join时，join列==排序列==分桶列

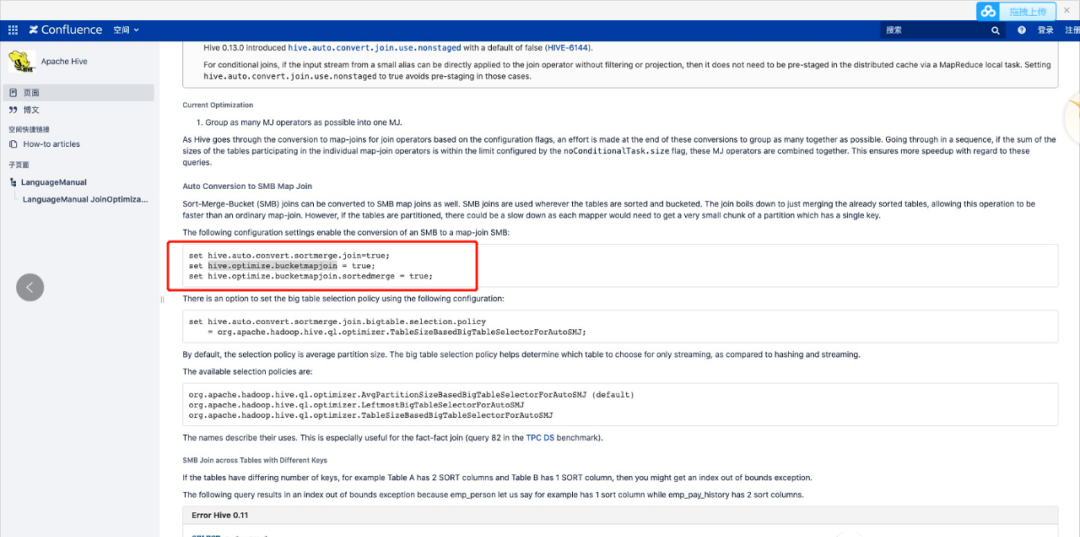

hive当中也有此功能需要开启相应参数

那么接下来就先用Spark对表进行分桶

（1）分桶操作，并且保证两张表的桶的个数都相等，分桶列和排序列都是join列

  def useBucket(sparkSession: SparkSession) = {
    sparkSession.read.json("/user/atguigu/ods/coursepay.log")
      .write.partitionBy("dt", "dn")
      .format("parquet")
      .bucketBy(10, "orderid")
      .sortBy("orderid").mode(SaveMode.Overwrite)
      .saveAsTable("dwd.dwd_course_pay_cluster")
    sparkSession.read.json("/user/atguigu/ods/courseshoppingcart.log")
      .write.partitionBy("dt", "dn")
      .bucketBy(10, "orderid")
      .format("parquet")
      .sortBy("orderid").mode(SaveMode.Overwrite)
      .saveAsTable("dwd.dwd_course_shopping_cart_cluster")
  }

（2）执行分桶任务

（3）分完桶之后，Spark Sql查询分桶表，进行join。步骤不变，只是查询的表发生了变化，查询分桶表。

def useSMBJoin(sparkSession: SparkSession) = {
    //查询出三张表 并进行join 插入到最终表中
    val saleCourse = sparkSession.sql("select *from dwd.dwd_sale_course")
    val coursePay = sparkSession.sql("select * from dwd.dwd_course_pay_cluster")
      .withColumnRenamed("discount", "pay_discount")
      .withColumnRenamed("createtime", "pay_createtime")
    val courseShoppingCart = sparkSession.sql("select *from dwd.dwd_course_shopping_cart_cluster")
      .drop("coursename")
      .withColumnRenamed("discount", "cart_discount")
      .withColumnRenamed("createtime", "cart_createtime")
      //两张分桶表进行 join
    val tmpdata = courseShoppingCart.join(coursePay, Seq("orderid"), "left")
      //再与小表进行 join
    val result = broadcast(saleCourse).join(tmpdata, Seq("courseid"), "right")
    result.select("courseid", "coursename", "status", "pointlistid", "majorid", "chapterid", "chaptername", "edusubjectid"
      , "edusubjectname", "teacherid", "teachername", "coursemanager", "money", "orderid", "cart_discount", "sellmoney",
      "cart_createtime", "pay_discount", "paymoney", "pay_createtime", "dwd.dwd_sale_course.dt", "dwd.dwd_sale_course.dn")
      .write.mode(SaveMode.Overwrite).saveAsTable("dws.dws_salecourse_detail_2")


  }
