Kubernetes是一个可移植的,可扩展的开源平台,用于管理容器化的工作负载和服务,可促进声明式配置和自动化。它拥有一个庞大且快速增长的生态系统。Kubernetes的服务,支持和工具使用得非常广泛。

Kubernetes这个名字起源于希腊语,意思是舵手或飞行员。Google在2014年开源Kubernetes项目。Kubernetes将超过15年的Google在大规模生产工作负载方面的经验与社区中最好的想法和实践相结合。

一、环境准备

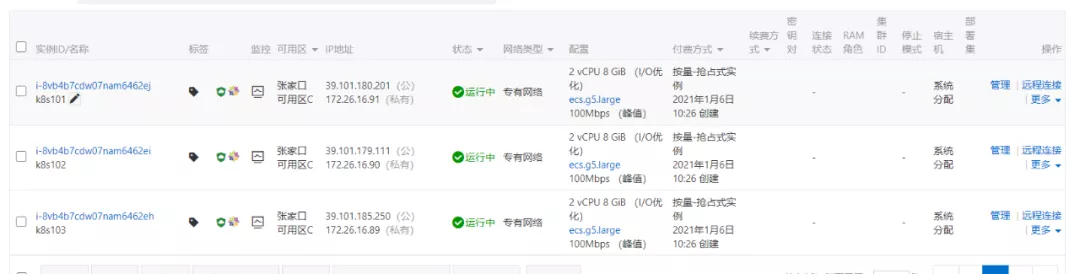

购买三台阿里集群,并启动,我选择的系统是Centos7.5

手把手教你搞定K8S集群的安装部署



要求机器以下配置

1.系统环境

· Ubuntu16.04+

· Debian9+

· CentOS 7

· Red HatEnterprise Linux (RHEL) 7

· Fedora25+

· HypriotOSv1.0.1+

· FlatcarContainer Linux (tested with 2512.3.0)

2.2G内存或以上

3.2CPU或更多

4.需要可以连接互联网

5.每个节点需要有唯一的主机名

6.需要开放部分端口

7.需要禁用Swap功能

开放端口:

Master

端口

用途

6443*

Kubernetes API server

2379-2380

etcd server client API

10250

kubelet API

10251

Kube-scheduler

10252

Kube-controller-manager

Worker node

端口

用途

10250

kubelet API

30000-32767

NodePort Services†

二、安装Docker

1、安装Docker,设置存储库。工作节点都进行安装

[root@k8s ~]# sudo yum install -y yum-utils
[root@k8s ~]# sudo yum-config-manager \
     --add-repo \
     https://download.docker.com/linux/centos/docker-ce.repo

2、启用存储库,如需关闭将参数–enable 改为 –disable

[root@k8s ~]# sudo yum-config-manager --enable docker-ce-nightly

3、启用测试通道,如需关闭将参数–enable 改为 –disable

[root@k8s ~]# sudo yum-config-manager --enable docker-ce-test

4、安装Docker引擎

[root@k8s ~]# sudo yum install docker-ce docker-ce-cli containerd.io

5、启动Docker

[root@k8s ~]# sudo systemctl start docker

6、检测Docker是否正确安装

[root@k8s ~]# sudo docker run hello-world

Unableto find image 'hello-world:latest' locally
latest: Pulling from library/hello-world
0e03bdcc26d7: Pull complete
Digest:sha256: 1a523af650137b8accdaed439c17d684df61ee4d74feac151b5b337bd29e7eec
Status: Downloaded newer image for hello-world:latest

Hello from Docker!
This message shows that your installation appears to be working correctly.

Docker安装网址:

https://docs.docker.com/engine/install/centos/#install-using-the-repository

三、使用工具安装Kubernetes集群

安装Kubernetes集群可以借助三种工具分别是Kubeadm、Kops、Kubespray。这里我们使用Kubeadm来进行安装。

1、 安装Master

(1)关闭swap

[root@k8s101 ~]# swapoff -a

(2)配置yum源

[root@k8s101 ~]# cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpghttps://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

(3)安装kubeadm相关工具

[root@k8s101 ~]# yum install -y kubelet kubeadm kubectl

(4)后去init.default初始化文件

[root@k8s101 ~]# kubeadm config print init-defaults >init.default.yaml

(5)编辑init.default文件,修改仓库,修改pod的地址范围

[root@k8s101 ~]# vim init.default.yaml
imageRepository:registry.aliyuncs.com/google_containers
kind:ClusterConfiguration
kubernetesVersion:v1.20.0
networking:
  podSubnet:"192.168.0.0/16"
  dnsDomain: cluster.local
 serviceSubnet: 10.96.0.0/12
scheduler:{}

(6)下载Kubernetes的相关镜像

[root@k8s101 ~]# kubeadm config images pull --config=init.default.yaml

[config/images]Pulled registry.aliyuncs.com/google_containers/kube-apiserver:v1.20.0
[config/images]Pulled registry.aliyuncs.com/google_containers/kube-controller-manager:v1.20.0
[config/images]Pulled registry.aliyuncs.com/google_containers/kube-scheduler:v1.20.0
[config/images]Pulled registry.aliyuncs.com/google_containers/kube-proxy:v1.20.0
[config/images]Pulled registry.aliyuncs.com/google_containers/pause:3.2
[config/images]Pulled registry.aliyuncs.com/google_containers/etcd:3.4.13-0
[config/images]Pulled registry.aliyuncs.com/google_containers/coredns:1.7.0

(7)启动Kubelet,并设置开机自启,设置 cgroupDriver

[root@k8s101 ~]# vim /etc/docker/daemon.json
{
"exec-opts":["native.cgroupdriver=systemd"]
}
[root@k8s101 ~]# vim /usr/lib/systemd/system/kubelet.service.d/10-kubeadm.conf
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf--kubeconfig=/etc/kubernetes/kubelet.conf --cgroup-driver=systemd"
[root@k8s101 ~]# systemctl daemon-reload
[root@k8s101 ~]# systemctl restart docker
[root@k8s101 ~]# systemctl enable docker
[root@k8s101 ~]# systemctl enable kubelet

(8)Kubeadm init命令初始化集群集,集群先设置–pod-network-cidr=192.168.0.0/16参数,关闭网络功能

[root@k8s101 ~]#kubeadm init   --image-repositoryregistry.aliyuncs.com/google_containers --kubernetes-version=v1.20.0--pod-network-cidr=192.168.0.0/16

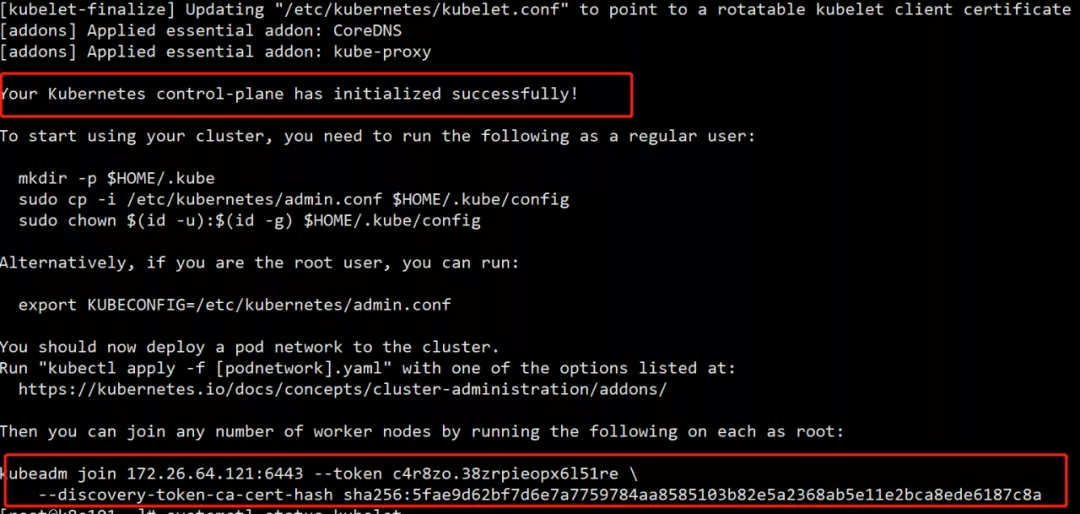

(9)执行命令,最后提示安装成功,记下token

手把手教你搞定K8S集群的安装部署



kubeadmjoin 172.26.64.121:6443 --token c4r8zo.38zrpieopx6l51re \
    --discovery-token-ca-cert-hashsha256:5fae9d62bf7d6e7a7759784aa8585103b82e5a2368ab5e11e2bca8ede6187c8a

(10)按照图片提示,创建k8s用户,将配置文件复制到普通用户下.如果是root则导出

[root@k8s software]# useradd  k8s
[root@k8s software]# passwd k8s
[root@k8s ~]# usermod -aG docker k8s
[root@k8s ~]# vim /etc/sudoers
k8s     ALL=(ALL)       ALL
[root@k8s101 ~]# su k8s
[k8s@k8s101 ~]$ mkdir -p $HOME/.kube
[k8s@k8s101 ~]$ sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[k8s@k8s101 ~]$ sudo chown $(id -u):$(id -g) $HOME/.kube/config
[k8s@k8s101 ~]$ exit
[root@k8s101 ~]# export KUBECONFIG=/etc/kubernetes/admin.conf

(11)这个时候Master已经安装完毕,但是缺少NODE,并且没有容器网络功能,验证安装是否成功:

[root@k8s101 ~]# kubectl get -n kube-system configmap
NAME                                 DATA   AGE
coredns                              1      22m
extension-apiserver-authentication   6     22m
kube-proxy                           2      22m
kube-root-ca.crt                     1      22m
kubeadm-config                       2      22m
kubelet-config-1.20                  1      22m

2、 安装Node加入集群

(1)安装Node前置工作和安装Master一样都要安装Docker,设置开机自启

(2)安装完Docker之后同样安装kubeadm相关工具

[root@k8s102 ~]#cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpghttps://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
[root@k8s102 ~]#  yum install -y kubelet kubeadmkubectl

[root@k8s103 ~]#cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpghttps://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
[root@k8s103 ~]#  yum install -y kubelet kubeadmkubectl

[root@k8s102 ~]# vim /etc/docker/daemon.json
{
"exec-opts":["native.cgroupdriver=systemd"]
}
[root@k8s102 ~]# vim /usr/lib/systemd/system/kubelet.service.d/10-kubeadm.conf
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf--kubeconfig=/etc/kubernetes/kubelet.conf --cgroup-driver=systemd"
[root@k8s102 ~]# systemctl daemon-reload
[root@k8s102 ~]# systemctl enable docker.service
[root@k8s102 ~]# systemctl restart docker
[root@k8s102 ~]# systemctl enable kubelet


[root@k8s103 ~]# vim /etc/docker/daemon.json
{
"exec-opts":["native.cgroupdriver=systemd"]
}
[root@k8s103 ~]#  vim /usr/lib/systemd/system/kubelet.service.d/10-kubeadm.conf
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf--kubeconfig=/etc/kubernetes/kubelet.conf --cgroup-driver=systemd"
[root@k8s103 ~]# systemctl daemon-reload
[root@k8s103 ~]# systemctl enable docker.service
[root@k8s103 ~]# systemctl restart docker
[root@k8s103 ~]# systemctl enable kubelet

(3)加入Master,创建join-config.ymal。apiServer为Master地址,token为上面Master创建完毕后生成记录的token

[root@k8s102 ~]# vim join-config.ymal
apiVersion:kubeadm.k8s.io/v1beta2
kind:JoinConfiguration
discovery:
  bootstrapToken:
    apiServerEndpoint: 172.26.64.121:6443
    token: c4r8zo.38zrpieopx6l51re
    unsafeSkipCAVerification: true
  tlsBootstrapToken: c4r8zo.38zrpieopx6l51re

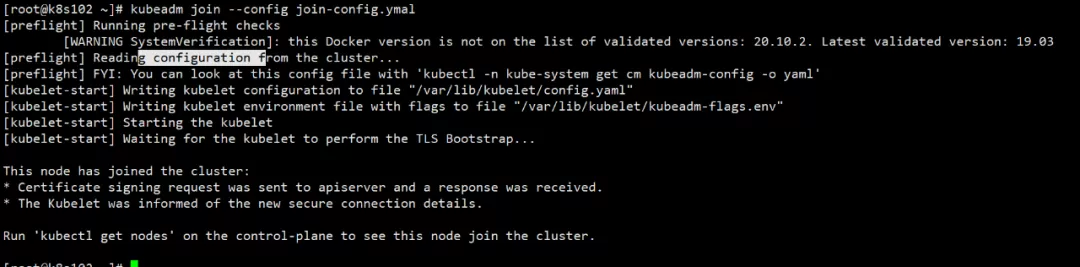

[root@k8s102 ~]# kubeadm join --config join-config.ymal
手把手教你搞定K8S集群的安装部署

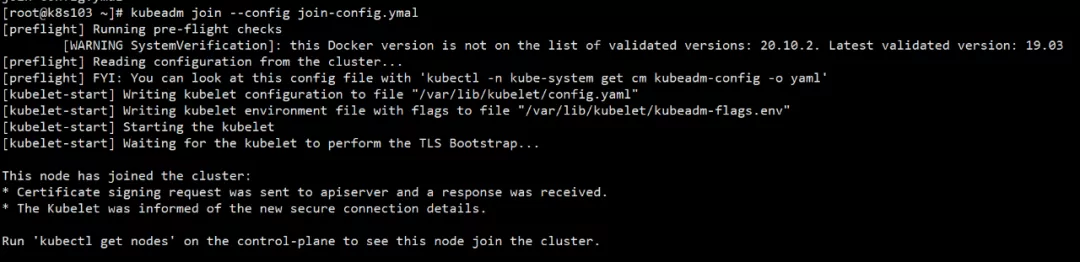

(4)提示成功,103也执行同样操作,分发join-config.ymal,执行join命令

[root@k8s102 ~]# scp join-config.ymal 172.26.64.120:/root/
[root@k8s103 ~]# kubeadm join --config join-config.ymal
手把手教你搞定K8S集群的安装部署



3、 安装网络插件

(1)查看状态,此时可以看到节点都已经有了,但是都是NotReady状态,原因就是没有安装CNI网络插件

[root@k8s101 ~]# kubectl get nodes
NAME     STATUS    ROLES                  AGE     VERSION
k8s101   NotReady  control-plane,master   78m     v1.20.1
k8s102   NotReady  <none>                5m      v1.20.1
k8s103   NotReady  <none>                 2m38s   v1.20.1

(2)安装CNI网络插件,选择weave插件

[root@k8s101 ~]# docker pull quay.io/coreos/flannel:v0.9.1-amd64
[root@k8s101 ~]# mkdir -p /etc/cni/net.d/
[root@k8s101 ~]# cat <<EOF> /etc/cni/net.d/10-flannel.conf
{"name":"cbr0","type":"flannel","delegate":{"isDefaultGateway": true}}
EOF
[root@k8s101 ~]# mkdir /usr/share/oci-umount/oci-umount.d -p
[root@k8s101 ~]# mkdir /run/flannel/

[root@k8s101 ~]# kubectl apply  -f"https://cloud.weave.works/k8s/net?k8s-version=$(kubectl version | base64| tr -d '\n')"

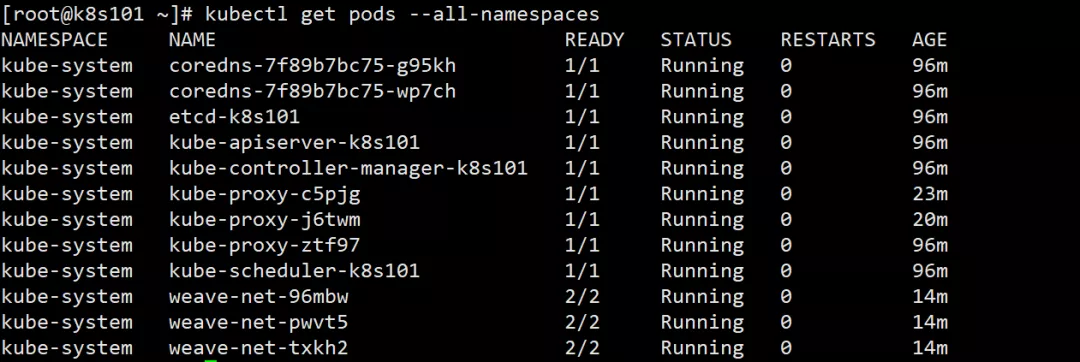

(3)验证集群是否安装成功。安装weave跟节点网速有关,可能会非常慢,需要等待

[root@k8s101 ~]# kubectl get pods --all-namespaces
手把手教你搞定K8S集群的安装部署



集群安装成功。如果中途装失败了想重新安装可以使用kubeadm reset命令重置,再次进行安装。

4、 配置Docker镜像加速

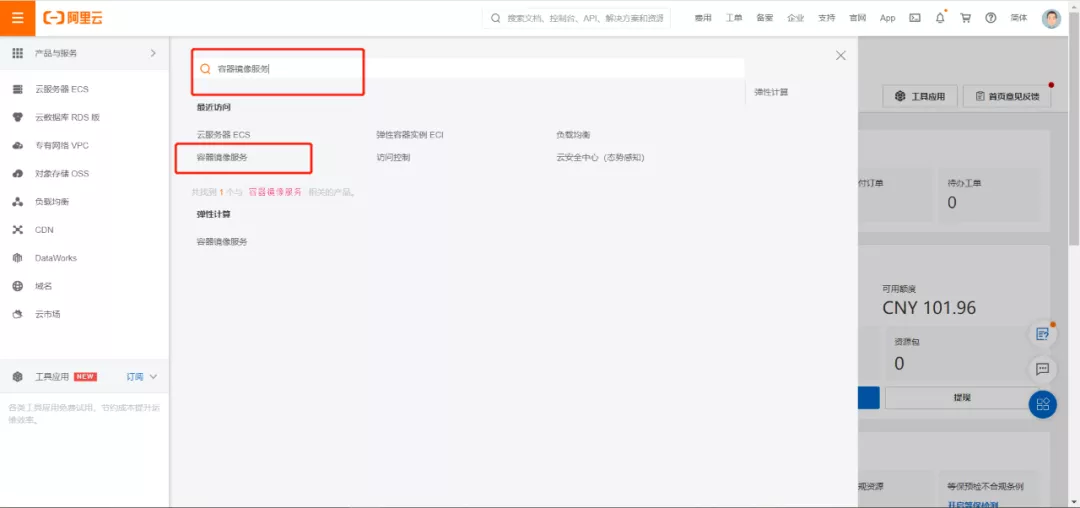

(1)首先登陆阿里云服务,搜索容器镜像服务

手把手教你搞定K8S集群的安装部署

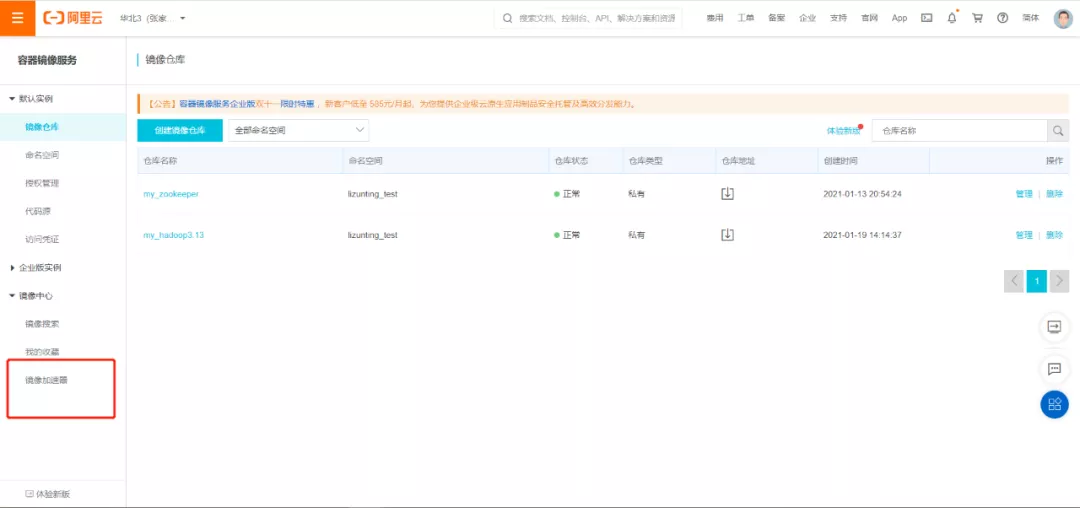

(2)进入到镜像服务后点击镜像加速器

手把手教你搞定K8S集群的安装部署

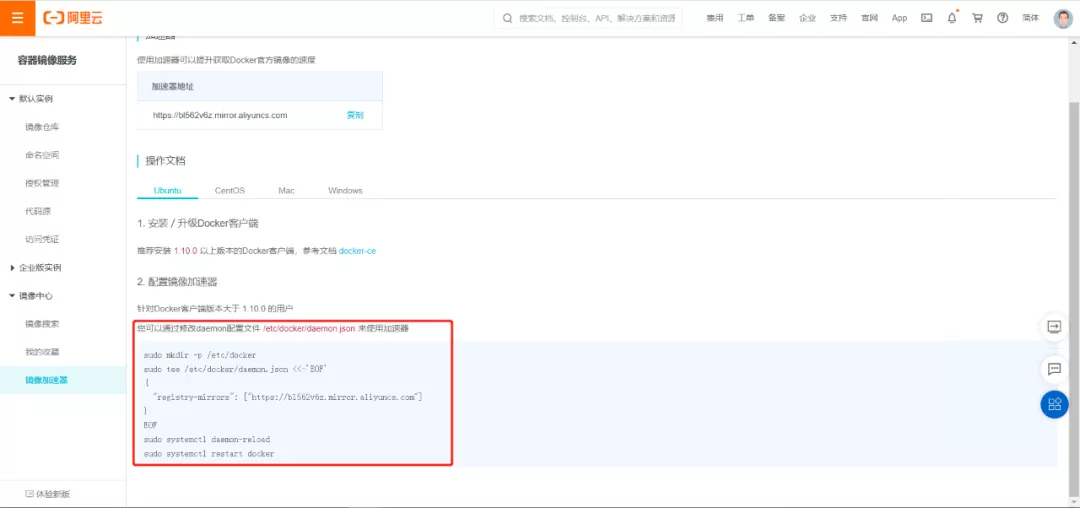

(3)根据网站提示,给每台机器都配置docker镜像加速

手把手教你搞定K8S集群的安装部署



[root@k8s101 root]$ vim /etc/docker/daemon.json
{
"registry-mirrors":["https://bl562v6z.mirror.aliyuncs.com"],
"exec-opts":["native.cgroupdriver=systemd"]
}
[root@k8s101 root]$ sudo systemctl daemon-reload
[root@k8s101 root]$ sudo systemctl restart docker

[root@k8s102 ~]# vim /etc/docker/daemon.json
{
"registry-mirrors":["https://bl562v6z.mirror.aliyuncs.com"],
"exec-opts":["native.cgroupdriver=systemd"]
}
[root@k8s102 root]$ sudo systemctl daemon-reload
[root@k8s102 root]$ sudo systemctl restart docker

{
"registry-mirrors":["https://bl562v6z.mirror.aliyuncs.com"],
"exec-opts":["native.cgroupdriver=systemd"]
}
[root@k8s103 root]$ sudo systemctl daemon-reload
[root@k8s103 root]$ sudo systemctl restart docker

5、 配置k8s镜像拉取

(1)根据阿里云账号docker(自己的阿里云账号),登录成功会在用户根目录下生成.docker目录和config.json认证密钥

[root@k8s101 ~]# docker login --username=lzt_otzregistry.cn-zhangjiakou.aliyuncs.com
[root@k8s102 ~]# docker login --username=lzt_otzregistry.cn-zhangjiakou.aliyuncs.com
[root@k8s103 ~]# docker login --username=lzt_otzregistry.cn-zhangjiakou.aliyuncs.com

(2)k8s拉取镜像并不会默认读取docker认证密钥所欲需要配置,根据官网提示
https://kubernetes.io/docs/concepts/containers/images/#using-a-private-regist。将docker的认证密钥复制到k8s下

[root@k8s101 ~]# cd ~
[root@k8s101 ~]# cp .docker/config.json /var/lib/kubelet/
[root@k8s101 ~]#  systemctl restart kubelet
[root@k8s102 ~]# cp .docker/config.json /var/lib/kubelet/
[root@k8s102 ~]#  systemctl restart kubelet
[root@k8s103 ~]# cp .docker/config.json /var/lib/kubelet/
[root@k8s103 ~]#  systemctl restart kubelet

6、 简单任务尝试

使用K8s运行MySql

(1)编写MySql RC(Replication Controller)文件,注意空格对齐(很重要)

[root@k8s101~]# su k8s
[k8s@k8s101 root]$ cd ~
[k8s@k8s101 ~]$ vim mysql-rc.yaml
apiVersion:v1
kind:ReplicationController         #副本控制器RC
metadata:
   name: mysql                      #RC的名称,全局唯一
spec:
   replicas: 1                    #Pod副本的期待数量
   selector:
       app: mysql                   #符合目标的Pod拥有此标签
   template:                      #根据模板创建Pod的副本(实例)
     metadata:
        labels:
         app: mysql                 #Pod副本拥有的标签,对应RC的Selector
     spec:
      containers:                   #Pod内容器的定义部分
      - name: mysql                 #容器名称
        image: docker.io/library/mysql:5.7                #容器对应的Docker Image
        ports:
        - containerPort: 3306       #容器应用监听的端口号
        env:
        - name: MYSQL_ROOT_PASSWORD
          value: "123456"

(2)发布到Kubernetes集群中

[k8s@k8s101 ~]$ kubectl create -f mysql-rc.yaml
replicationcontroller/mysqlcreated

(3)查看刚创建的RC

[k8s@k8s101 ~]$ kubectl get rc
NAME    DESIRED  CURRENT   READY   AGE
mysql   1         1        0       76s

(4)查看Pod的创建情况

[k8s@k8s101 ~]$ kubectl get pods
NAME          READY   STATUS   RESTARTS   AGE
mysql-82pvs   1/1    Running   0          62s

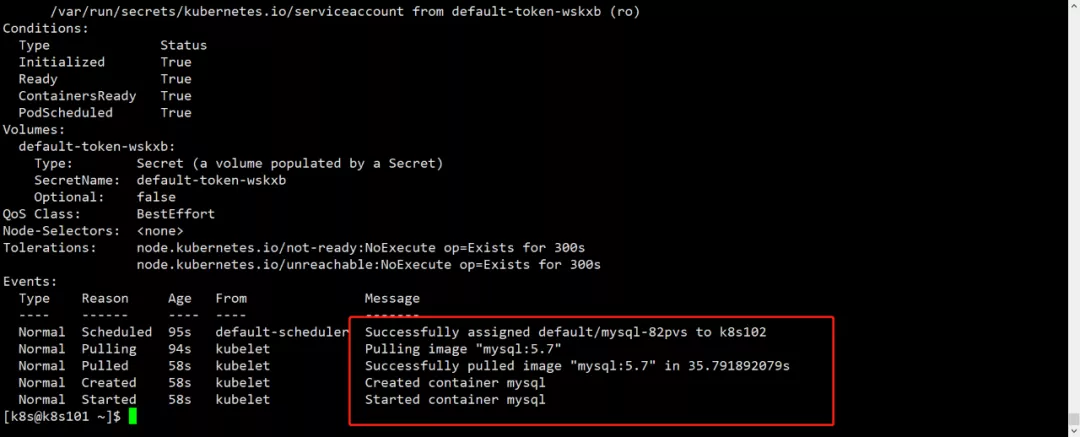

(5)查看详情,可以看到容器创建在了k8s102机器上,所以102上的docker必须配置好了镜像加速,否则mysql镜像会拉取不下来。

[k8s@k8s101 ~]$ kubectl describe pod mysql-82pvs
手把手教你搞定K8S集群的安装部署



(6)来到k8s102机器,查看容器详情,此时会有两个mysql相关容器

[root@k8s102 ~]# docker ps |grep mysql
手把手教你搞定K8S集群的安装部署



(7)创建关联的Kubernets Service文件关联MySql。

[k8s@k8s101 ~]$ vim mysql-svc.yaml
apiVersion:v1
kind:Service                 #表名是Kubernetes Service
metadata:
  name: mysql                 #Service的全局唯一名称
spec:
 type: NodePort
 ports:
 - port: 3306               #Service提供服务器的端口号
   nodePort: 30001          #堆外暴露端口
 selector:                   #Service对应的Pod拥有这里定义的标签
    app: mysql
[k8s@k8s101 ~]$ kubectl create -f mysql-svc.yaml
service/mysqlcreated

(8)查看创建好的Service

[k8s@k8s101 ~]$ kubectl get services
NAME         TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
kubernetes   ClusterIP  10.96.0.1       <none>        443/TCP          24h
mysql        NodePort    10.102.49.161   <none>        3306:30001/TCP   7s

(9)通过客户端工具访问k8s101 30001端口,访问Mysql。这样通过k8s部署MySql就完成了

手把手教你搞定K8S集群的安装部署



6、 动态存储管理NFS

[root@k8s101 ~]# yum -y install nfs-utils rpcbind
[root@k8s102 ~]# yum -y install nfs-utils rpcbind
[root@k8s103 ~]# yum -y install nfs-utils rpcbind

[root@k8s101 ~]# systemctl  start rpcbind.service
[root@k8s101 ~]# systemctl  start nfs
[root@k8s101 ~]# systemctl enable rpcbind.service
[root@k8s101 ~]# systemctl enable nfs

[root@k8s102 ~]# systemctl  start rpcbind.service
[root@k8s102 ~]# systemctl  start nfs
[root@k8s102 ~]# systemctl enable rpcbind.service
[root@k8s102 ~]# systemctl enable nfs

[root@k8s103 ~]# systemctl  start rpcbind.service
[root@k8s103 ~]# systemctl  start nfs
[root@k8s103 ~]# systemctl enable rpcbind.service
[root@k8s103 ~]# systemctl enable nfs

[root@k8s101 ~]# mkdir /data/nfs -p
[root@k8s101 ~]# chown nfsnobody.nfsnobody /data/nfs
[root@k8s102 ~]# mkdir /data/nfs -p
[root@k8s102 ~]# chown nfsnobody.nfsnobody /data/nfs
[root@k8s103 ~]# mkdir /data/nfs -p
[root@k8s103 ~]# chown nfsnobody.nfsnobody /data/nfs

Master地址

[root@k8s101 ~]# cat>>/etc/exports<<EOF
/data/nfs172.26.64.121/20(rw,sync,no_root_squash,no_all_squash)
EOF

[root@k8s101 ~]# mkdir nfs
[root@k8s101 ~]# cd nfs/
[root@k8s101nfs]# wget https://github.com/kubernetes-retired/external-storage/tree/master/nfs-client/deploy/rbac.yaml
[root@k8s101 nfs]# wgethttps://github.com/kubernetes-retired/external-storage/tree/master/nfs-client/deploy/class.yaml
[root@k8s101 nfs]# wget https://github.com/kubernetes-retired/external-storage/tree/master/nfs-client/deploy/deployment.yaml

[root@k8s101 nfs]# su k8s
[k8s@k8s101 nfs]$ kubectl  apply -f class.yaml
[k8s@k8s101 nfs]$ kubectl  apply -f rbac.yaml

修改下载好的deoplyment.yaml

[k8s@k8s101 nfs]$ vim deployment.yaml
apiVersion:apps/v1
kind:Deployment
metadata:
  name: nfs-client-provisioner
  labels:
    app: nfs-client-provisioner
  # replace with namespace where provisioner isdeployed
  namespace: default
spec:
  replicas: 1
  strategy:
    type: Recreate
  selector:
    matchLabels:
      app: nfs-client-provisioner
  template:
    metadata:
      labels:
        app: nfs-client-provisioner
    spec:
      serviceAccountName:nfs-client-provisioner
      containers:
        - name: nfs-client-provisioner
          image: registry.cn-zhangjiakou.aliyuncs.com/my-bonc/nfs-client-provisioner:latest
          volumeMounts:
            - name: nfs-client-root
              mountPath: /persistentvolumes
          env:
            - name: PROVISIONER_NAME
              value: fuseim.pri/ifs
            - name: NFS_SERVER
              value:172.26.64.121   #nfs服务的IP K8S101私有ip
            - name: NFS_PATH
              value: /data/nfs       #nfs服务挂载目录
      volumes:
        - name: nfs-client-root
          nfs:
            server: 172.26.64.121    #nfs服务的IP  k8s101
            path: /data/nfs  #nfs服务挂载目录

导入deploy.yaml

[k8s@k8s101 nfs]$ kubectl create -f deployment.yaml

查看

[k8s@k8s101 nfs]$ kubectl get sc
NAME                  PROVISIONER               RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
managed-nfs-storage   fuseim.pri/ifs            Delete          Immediate           false                  5m4s
[k8s@k8s101 nfs]$ kubectl get pods
NAME                                     READY   STATUS    RESTARTS  AGE
nfs-client-provisioner-7859c747f5-p82js   1/1    Running   0          31s

[k8s@k8s101 nfs]$ sudo vim /etc/kubernetes/manifests/kube-apiserver.yaml
  - --feature-gates=RemoveSelfLink=false  #在command里添加此内容

测试创建pvc

[k8s@k8s101 nfs]$ vim test-pvc.yaml
kind:PersistentVolumeClaim
apiVersion:v1
metadata:
  name: test-claim
  annotations:
    volume.beta.kubernetes.io/storage-class:"managed-nfs-storage"
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 1Mi

导入

[k8s@k8s101 nfs]$ kubectl create -f test-pvc.yaml

查看,自动创建了pvcpv

[k8s@k8s101 nfs]$ kubectl get pvc
NAME                 STATUS    VOLUME                                    CAPACITY   ACCESS MODES   STORAGECLASS          AGE
test-claim           Bound     pvc-a22d6cad-f7e1-4b38-bcc3-7099d7a964b8   1Mi       RWX           managed-nfs-storage   29s

[k8s@k8s101 nfs]$ kubectl get pv
NAME                                      CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS  CLAIM                STORAGECLASS          REASON   AGE
pvc-a22d6cad-f7e1-4b38-bcc3-7099d7a964b8   1Mi       RWX            Delete

想要了解跟多关于

大数据培训

课程内容欢迎关注尚硅谷大数据培训,尚硅谷除了这些技术文章外还有免费的高质量大数据培训课程视频供广大学员下载学习。

上一篇:
下一篇:
相关课程

java培训 大数据培训 前端培训

关于尚硅谷
教育理念
名师团队
学员心声
资源下载
视频下载
资料下载
工具下载
加入我们
招聘岗位
岗位介绍
招贤纳师
联系我们
全国统一咨询电话:010-56253825
地址:北京市昌平区宏福科技园2号楼3层(北京校区)

深圳市宝安区西部硅谷大厦B座C区一层(深圳校区)

上海市松江区谷阳北路166号大江商厦3层(上海校区)

武汉市东湖高新开发区东湖网谷(武汉校区)

西安市雁塔区和发智能大厦B座3层(西安校区)

成都市成华区北辰星拱青创园(成都校区)
